Checkline DT-315A Digital Stroboscope
SHIMPO Digital Stroboscope

Portable, highly stable and accurate, industrial-quality tools for non-contact RPM measurement, inspection and observation of moving parts by "freezing" or "slowing down" the action. The DT-315 Digital Stroboscope may be powered directly by an AC Adapter or it's 12 V DC Internal battery.
Features:
  • Highest accuracy and most stable flash rate
  • Easy-to-read LED display Easy-to-operate controls
  • Detachable pistol-grip handle
  • Tripod mountable via "-20unc screw; 8mm or shorter
  • Provides 12 V DC power for external sensors
  • Accepts external trigger input and provides synchronizing pulse output
  • Phase shift for best view and flash photography
  • Flash rate control Instant double and half-rate flash selection for error-free reading

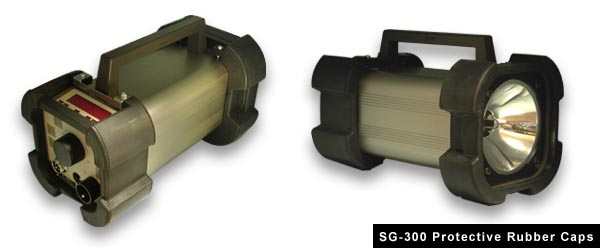

Added Protection to an already Sturdy Aluminum Housing

 Specifications
  • Flash Range: 100-30,000 FPM
  • Accuracy
    • Internal Mode: 0.01% of reading
    • External Mode: 0.01% or 1 digit
  • Drift: 0.01% per degree C
  • Update Time
    • Internal Mode: 0.2 seconds
    • External Mode:  0.01% or 1 digit
  • Output Signal:
    • Synchronous, 400 s pulse,
    • 0 to approx. 12 V DC
    • 1000 ohms impedance
  • Display & Rate: Divide or multiply by 2, selectable
  • Low Battery Indicator: Display shows L's
  • Operating Temperature: 32-104 (0-40C)
  • Display: 5 digits, 10 mm high, red LED
  • Flashtube: Xenon, 10 W maximum Flash Duration 10-30 s
  • Sensor Power Supply: 12 VDC 0.5V (50ma)
  • External Mode ONLY
    • Phase Shift: 0 - 359 with 1 resolution or 0 - 333 ms from 200 - 3,000 FPM
    • Input Signal Req'd for External Triggering:5-24 V P-P (not to exceed 35 V to GND) pulse width 50 s minimum, rise time less than 0.2 ms
    • Input Impedance: 10,000 ohms
  • Power Requirements: Three (3) hour, external, rechareable 12 V DC Power Pack or external 12 V DC
  • Accessories Included: External battery pack, 12 V DC, with 115 V AC or 230 V AC Charger & carrying case
  • Battery Life (charged): 3 hour at high flash rate
  • Full Charge in: 16 hours
  • Dimensions:  4.7 x 4.7 x7.2" (120 x 120 x 183mm)
  • Weight:4.5 lbs. (2 kg)


Item# Item Name Our Price Qty Add
ELE-DT-315A-2 Checkline 1 DT-315A 230V Stroboscope
$790.00
ELE-A-311FH Checkline 311FH Spare Flash Tube
$55.00
ELE-BP-315A Checkline BP-315A Spare/Replacement Battery Pack
$135.00
ELE-DT315A-NISTCAL Checkline DT-315 NIST Calibration Certificate
$100.00
ELE-DT-315A Checkline DT-315A 115V Stroboscope
$755.00
ELE-DT300ACC Checkline DT300CC Carrying Case
$120.00
ELE-SG-300-A Checkline SG-300 Protective Rubber Caps
$100.00
