ADASH A4900 M-ATEX-PRO Intrinsically Safe PRO Package
ADASH A4900 M-ATEX-PRO Intrinsically Safe PRO Package

Our Price: $7,495.00
Special Instructions: For Sale in the United States and Canada Only

Product Code: CMS-A4900-VIBRIO-M-ATEX-PRO-
Qty:

Description


A4900 Vibrio M ATEX Pro Package - ATEX Certified intrinsically safe version of A4900 Vibrio M Pro kit. Note this model does not have an IR sensor or Strobe Light.

The A4900 - Vibrio M-ATEX-PRO instrument allows you to perform all basic vibration diagnostics measurements such as bearing condition, identification of mechanical faults and lubrication assessment in hazardous locations.


The A4900 Vibrio M-ATEX-PRO Portable Vibration meter / Data collector upgrades the Standard M to pelican type transport case, leather instrument carrying holster and industrial grade headphones. Also contains the instrument, accelerometer, cable, magnetic base, motor fin probe and 2 AA batteries. The unit comes with 4 MB Memory for data storage. The Free version of DDS2014 Software enables full analysis capabilities and route generation for condition monitoring of rotating equipment.



  • Memory: 4 MB for data
  • Interface: USB 2.0 compatible
  • Display: Colour graphic OLED display 128x128 pixels, diagonal 1.5" (38 mm)
  • Temperature: Operating: -5C to 55C
  • Input: 1 x ICP powered accelerometer
  • Note this model does not have an IR sensor or Strobe Light

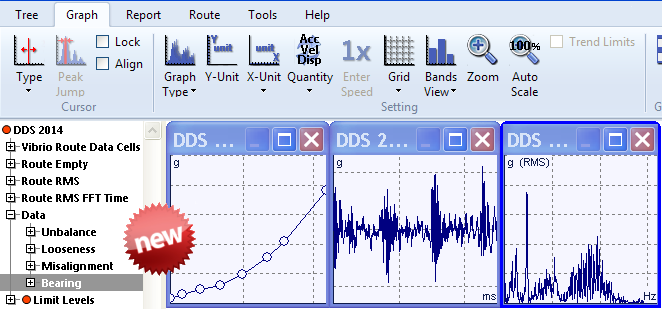

DDS2014 Vibration Monitoring Program for Vibrio M


Unbalance, looseness and misalignment
Adash A4900 Vibrio III; unbalance, looseness, misalignment
This screen gives an overview of the conditions of the followings by traffic light:

- unbalance
- looseness
- misalignment

Traffic light on the left (vertical) indicates the overall vibration condition
Traffic light on the right (vertical) indicates the bearing condition

Vibration levels
Adash A4900 Vibrio III, ISO10816-3, InfraRed bearing temperature, RPM
A4900 measures the RMS vibration level; and compare with the severity limits of ISO10816-3. Readings change in the Traffic Light color when an alarm is exceeded.

RPM is automatically detected and displayed at the bottom of the screen.
Bearing fault detection
Adash A4900 Vibrio III; g-ENV; bearing envelope acceleration
A4900 Vibrio M measures the g-ENV, which represents the condition of the bearing.

A4900 Vibrio M also display the vibration time signal. You can visualize the vibration impact due to a bearing fault by looking at its time signal. It is useful in differentiating whether the increase in g-ENV is due to a bearing fault or just lack of lubrication.

You can also listen to the vibration signal through the audio output, that is a proven technique for bearing fault detection especially for slow rotating machine.
Vibration Spectrum
Adash A4900 Vibrio III; FFT spectrum
A4900 Vibrio M measures the FFT spectrum; and list out the most dominates peaks to facilitate analysis.


What's Included:

  • Hard-shell plastic transport case and contains the instrument
  • Accelerometer (sensor)
  • Cable
  • Magnetic base
  • Finger tip probe to reach in between motor fins or other hard to reach locations
  • Earbuds
  • 2 AA batteries
  • One-year warranty on the instrument and components.
  • Lifetime warranty on sensor, cable and magnets.
  • 4 Hrs. Online training with certified level vibration analyst to review software and hardware applications.
  • 8 hrs. per unit serial number technical support for software and firmware.

Adash A4900 Specifications
Input: 1 x ICP powered accelerometer
Input range: 60 g PEAK with standard 100 mV/g sensor
(e.g. 600 g PEAK for 10 mV/g sensor, the sensitivity is editable in the unit)
Measurements: Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
Velocity PEAK: 10 - 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 - 16 000 Hz [g]
Acceleration Peak: 500 - 16 000 Hz [g]
Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples *
Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 - 16 000 Hz [g], 2048 samples*
Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]*
Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines,
range 400 Hz*
Displacement RMS: 2 - 100 Hz [m, mil]
Displacement 0-Peak: 2 - 100 Hz [m, mil]
Displacement Peak-Peak: 2 - 100 Hz [m, mil]
Temperature non-contact measurement: 0 - 380C (32 - 716F)
Other functions: LED stroboscope (0.17-300 Hz, 10 - 18 000 RPM)
LED torch
Vibration stethoscope
Memory: Off-Route
Route with DDS software for Vibrio M (free download)
Interface: USB 2.0 compatible
Software: Free version of DDS software (limited database size)
Display: Colour graphic OLED display 128x128 pixels, diagonal 1.5" (38 mm)
Output: 1 x AC signal 8 / 0,5 W for external headphones (signal listening)
Power: 2 x AA 1.5V batteries (alkaline, NiMH, Lithium - 8 hours of operation)
Temperature: Operating: -5C to 55C
Dimensions: 150 x 60 x 35 mm
Weight: 330 g including batteries (without cable, sensor and magnet)
540 g including batteries, cable, sensor and magnet
Accessories: vibration sensor, coiled cable to connect vibration sensor, magnetic base
for vibration sensor, headphones with 3.5 mm jack, USB cable, measuring
tip for manual pressure on the sensor, transport case, USB flash disc with
the manual.
