Extech EMF450 Multi-Field EMF Meter
Extech EMF450 Multi-Field EMF Meter

Our Price: $309.99


Product Code: EXT-EMF450
Qty:

Description

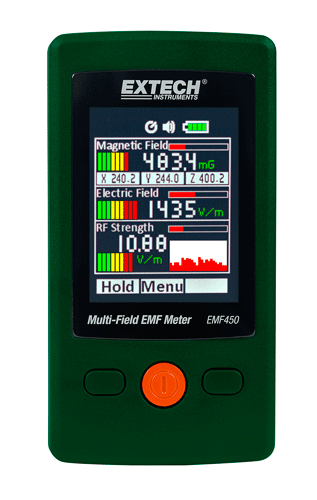

The EMF450 is a convenient 3-in-1 EMF meter which simultaneously measures and displays Magnetic Field, Electric Field and Radio Frequency Strength. Ergonomic pocket-sized design with an easy-to-navigate menu. Large vivid color TFT display shows digital readings, bargraphs, and trending graph. Magnetic Field, Electric Field, and Radio Frequency (RF) Strength merasurements. Store up to 20 RF historical records. Data Hold and Auto Power Off with disable feature. Complete with 3 AAA batteries and USB power supply cable.

FEATURES:
  • Multi-Field measurements: Magnetic Field, Electric Field, and Radio Frequency (RF) Strength
  • Magnetic Field Triple Axis Sensor (X, Y, Z)
  • Audible alarm
  • 2.4" (240 x 320 pixels) color TFT display
  • Adjustable screen brightness (low, medium, high)
  • Store up to 20 RF historical records
  • Data Hold and Auto Power Off with disable feature
  • Five languages: English, Traditional/Simplified Chinese, Japanese, Spanish
  • Complete with 3 AAA batteries and USB power supply cable
2 Years Warranty
Specifications Range Max Resolution Basic Accuracy
Magnetic Fields (50/60Hz) 20/200/2000mG 0.02/0.1/1mG ±(15%+100 digit)
2/20/200ìT 0.02/0.1/1ìT
Electric Fields (50/60Hz) 50V/m to 2000V/m ±(7% + 50dgt)
RF Strength (50MHz to 3.5GHz) 0.02uW/m² to 554.6mW/m² 0.02ìW/m²
0.02uW/cm² to 55.4uW/cm² 0.002ìW/cm²
36.1mV/m to14.46V/m 0.2mV/m
0.02mA/m to 38.35mA/m 0.2ìA/m
-51dB to 16dBm 2dB ±2dB at 2.45GHz
Dimensions/ Weight 4.5 x 2.4 x 0.8" (115 x 60 x 21mm)/ 4.2oz (120g)
Bargraph Magnetic Fields RF Strength Electric Field
Green 0 to 10.00mG 0 to 0.99mW/m² 0 to 500V/m
0 to 0.59V/m
Yellow 10.01 to 100mG 1 to 9.99mW/m² 501 to 1000V/m
0.6 to 1.9V/m
Red 101 to 2000mG >10mW/m² >1001V/m
>2V/m
