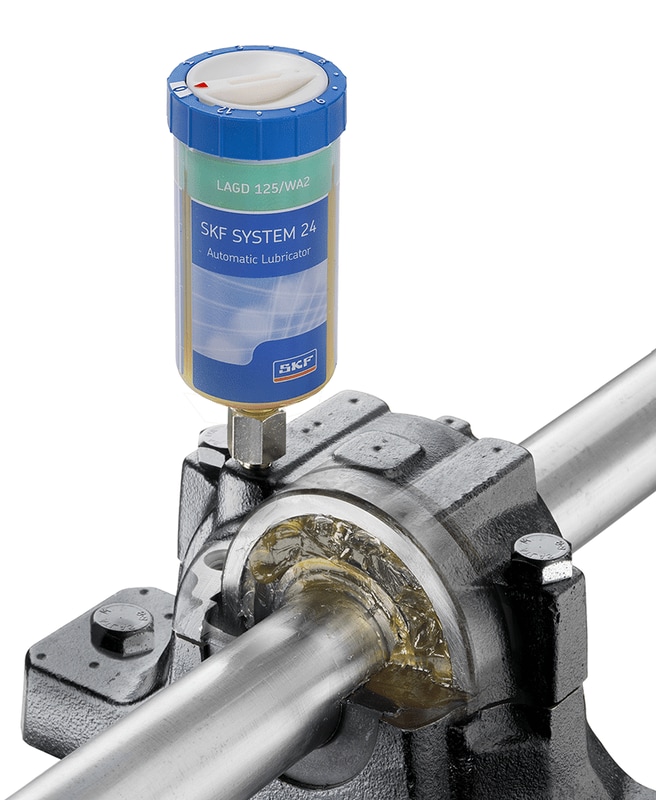

System 24 LAGD 10 Pack Single Point Automatic Lubricators
SKF System 24 LAGD


Gas driven single point automatic lubricators ~ SKF SYSTEM 24

The units are supplied ready-to-use straight from the box and filled with a wide range of high performance SKF lubricants. Tool-free activation and time-setting allow easy and accurate adjustment of lubrication flow.

  • Flexible dispense rate from 1 to 12 months
  • Stoppable or adjustable if required
  • Intrinsic safety rating: ATEX approved for zone 0
  • Transparent lubricant container allows visual inspection of dispense rate
  • Compact size, permits installation in restrictive areas
  • Greases and chain oils available
  • SKF DialSet software helps to calculate the correct dispense rate
  • Extensive range of accessories.


Gas driven single point automatic lubricators LAGD Series Typical Applications include:
  • Applications in restrictive and hazardous locations
  • Bearing housing lubrication
  • Electric motors
  • Fans and pumps
  • Conveyors
  • Cranes
  • Chains (oil)
  • Elevators and escalators (oil)




Ordering Details:

Designation
Description
LAGD 125/WA2125 ml (4.25 fl oz. US) unit filled with LGWA 2 grease (multipurpose EP type)
LAGD 60/WA2
 60 ml (2.03 fl oz. US) unit filled with LGWA 2 grease (multipurpose EP type)
LAGD 125/EM2
125 ml (4.25 fl oz. US) unit filled with LGEM 2 grease (high loads/slow rotations)
LAGD 125/FP2125 ml (4.25 fl oz. US) unit filled with LGFP 2 grease (food processing industry)
LAGD 125/GB2125 ml (4.25 fl oz. US) unit filled with LGGB 2 grease (biodegradable, low, toxicity)
LAGD 125/HB2125 ml (4.25 fl oz. US) unit filled with LGHB 2 grease (high temperature, loads, plain bearing)
LAGD 125/HP2125 ml (4.25 fl oz. US) unit filled with LGHP 2 grease (high performance polyurea)
LAGD 125/HFP15*125 ml (4.25 fl oz. US) unit filled with HFP150 oil (food processing, viscosity ISO150)
LAGD 125/HHT26*
125 ml (4.25 fl oz. US) unit filled with HHT265 oil (synthetic high temperature chain oil, viscosity ISO 265)
LAGD 125/HMT68*125 ml (4.25 fl oz. US) unit filled with HMT68 oil (mineral EP type chain oil, viscosity ISO 68)
LAGD 60/HMT68* 60 ml (2.03 fl oz. US) unit filled with HMT68 oil (mineral EP type chain oil, viscosity ISO 68)

* Includes non-return valve

Item# Item Name Our Price Sale Price Qty Add
SKF-LAGD 125/EM2 System 24 LAGD 125/EM2 10 Pack Single Point Automatic Lubricator
$508.57
SKF-LAGD 125/FP2 System 24 LAGD 125/FP2 10 Pack Single Point Automatic Lubricator
$537.18
SKF-LAGD 125/HB2 System 24 LAGD 125/HB2 10 Pack Single Point Automatic Lubricator
$570.48
SKF-LAGD 125/HMT68 System 24 LAGD 125/HMT68 10 Pack Single Point Automatic Lubricator
$574.22
SKF-LAGD 125/WA2 System 24 LAGD 125/WA2 10 Pack Single Point Automatic Lubricator
$508.57
$ 506.80
SKF-LAGD 60/EM2 System 24 LAGD 60/EM2 10 Pack Single Point Automatic Lubricator
$508.57
SKF-LAGD 60/HMT68 System 24 LAGD 60/HMT68 10 Pack Single Point Automatic Lubricator
$605.45
SKF-LAGD-60-HQ2 System 24 LAGD 60/HQ2 10 Pack Single Point Automatic Lubricator
$527.88
SKF-LAGD 60/WA2 System 24 LAGD 60/WA2 10 Pack Single Point Automatic Lubricator
$508.57
Check the items you wish to purchase, then click


Specifications :
  • Grease capacity:
    • LAGD 125 125 ml (4.25 fl oz. US)
    • LAGD 60 60 ml (2.03 fl oz. US)
  • Nominal emptying time: Adjustable; 1 - 12 months
  • Ambient temperature range: -20 to 60 °C (-5 to 140 °F)
  • Maximum operating pressure: 5 bar (75 psi)
  • Drive mechanism: Gas cell producing inert gas
  • Connection thread: G 1/4
  • Maximum feed line length:
    • Grease: 300 mm (11.8 in)
    • Oil: 1 500 mm (59.1 in)
  • Intrinsically safe approval:
    • II 1 GD EEx ia II C T6 T85 °C
    • I M 1 EEx ia I
  • Protection class: IP 68
  • Recommended storage temperature: 20 °C (70 °F)
  • Storage life of lubricator: 2 years
  • Weight:
    • LAGD 125: approx 200 g (7.1 oz)
    • LAGD 60: approx 130 g (4.6 oz)
  • Lubricant included
